Feature:

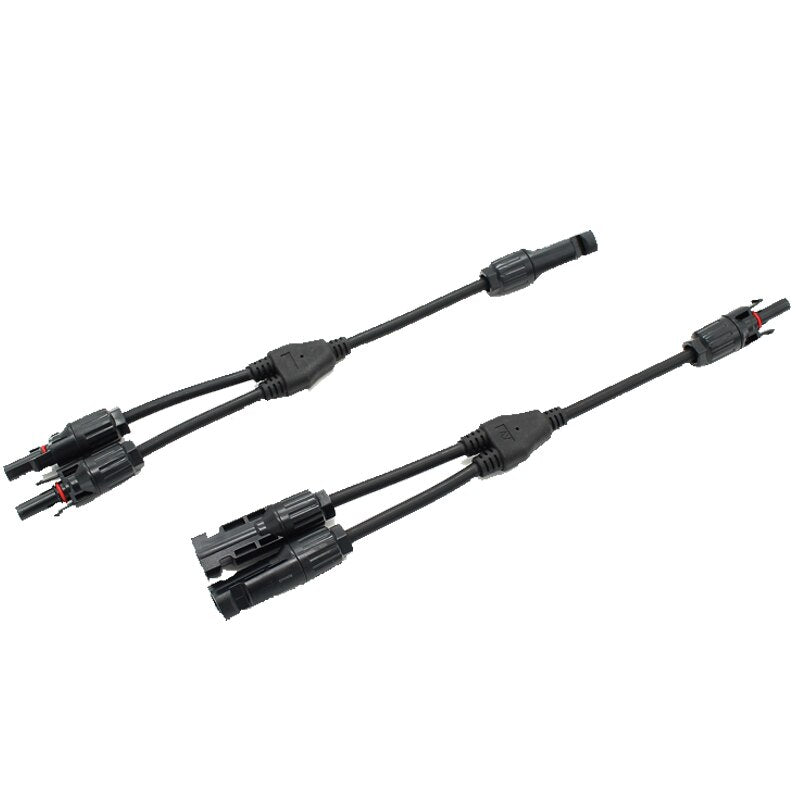

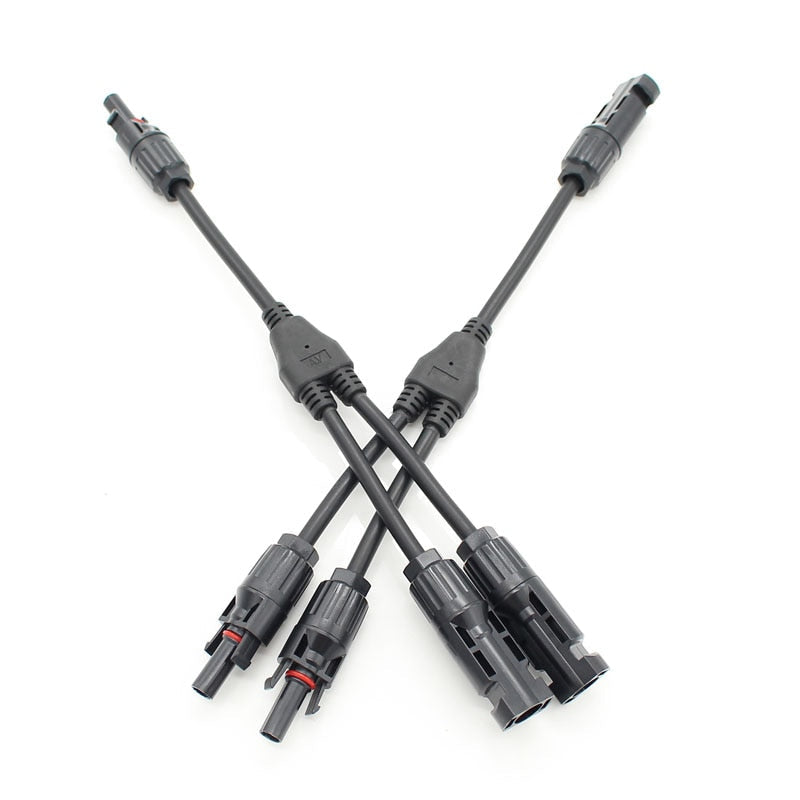

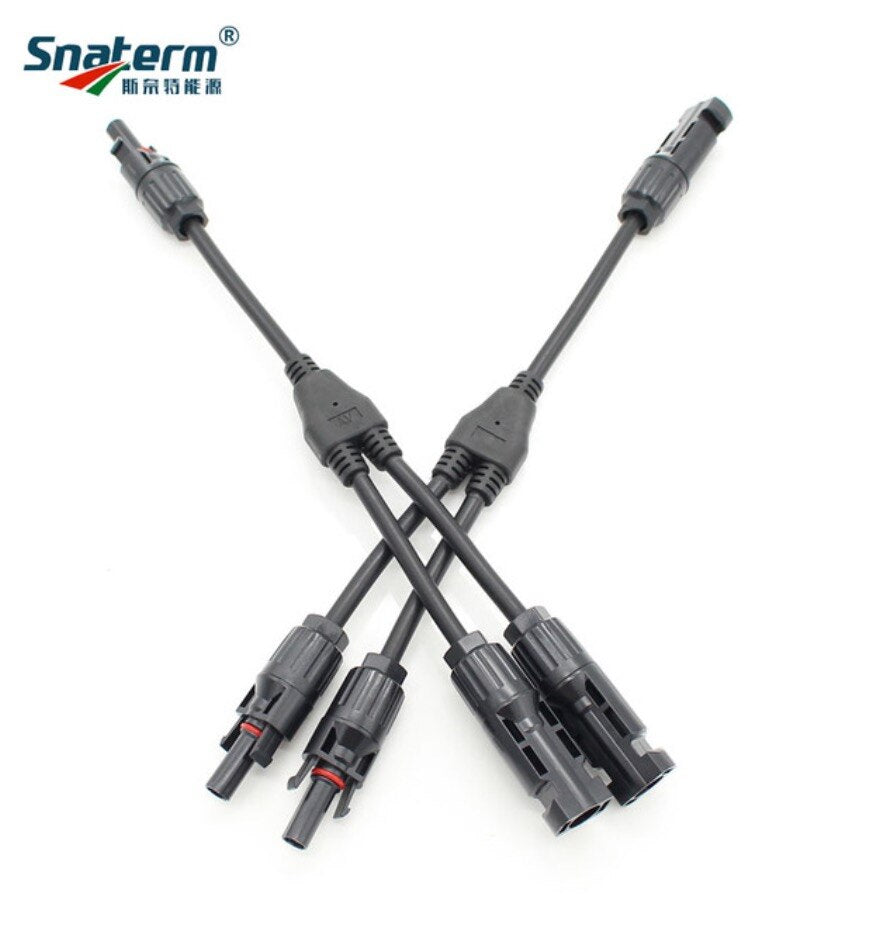

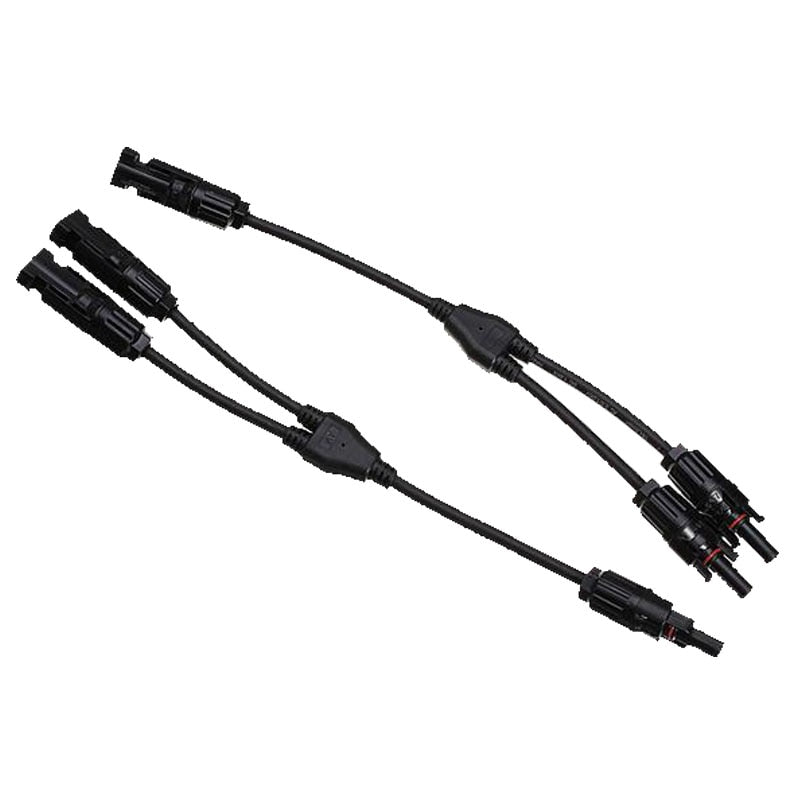

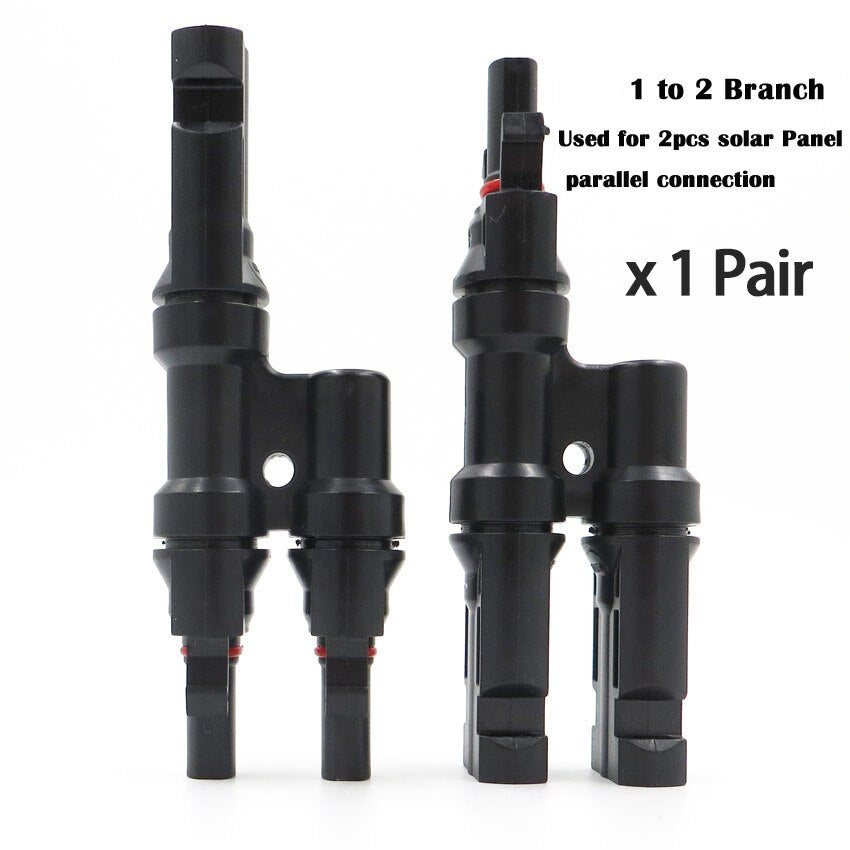

-1 Pair of Y Type Solar Panel Cable Connectors:one female to double male (F/M/M) and one male to double female (M/F/F)
-It can be used in harsh environment
-Compatible with solar connectors
-Double seal rings for better waterproof effect
-Compatible with PV cables with different insulation diameters
-It can be used in harsh environment
-With excellent aging resistance and UV endurance
-Created seal, design of dust proof
-Load capability with big current and high voltage
-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
-Strong pulling force capability
-Resistance of extra high & low temperature and fireproof
-Lower contact resistance
Specification:
-Cable specification: 4mm2(AWG12)
-Rated Current: 30A
-Rated voltage: 1000VDC
-Contact resistance: ≤0.2mmΩ
-Waterproof degree:IP67
-Flame class: UL94-VO
-Safety Class: 2
-Withdrawal force: ≥50N
-Insertion force: ≤50N
-Insulation material: PPO + PA
-Connecting system: crimping connection
-Cable length: 31cm
Package includes:

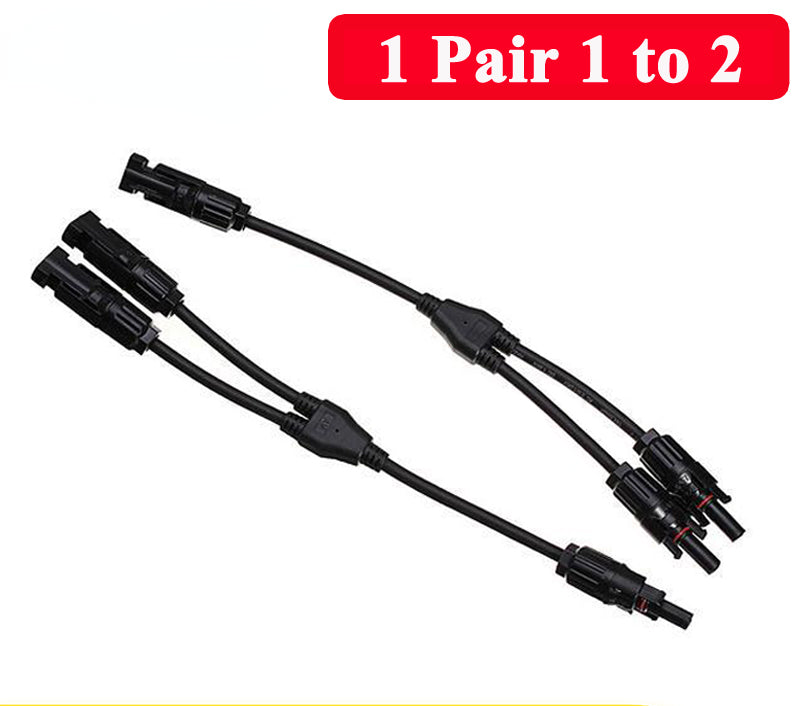

-1 Pair of Y Type Solar Panel cable Connectors(one Male & one female)
