Receiver product parameters:
Receiving frequency: 2.400GHz to 2.480GHz
Automatic switching of video system PAL/NTSC
Operating temperature-20~60 ℃/-10~50 ℃
Definition (dot) 320(W) x 240(H)
Receiving sensitivity ≤-85dBm
LCD 3.5'' TFT LCD
Low voltage shutdown when the battery is lower than 3.3V, automatic shutdown
Adapter power supply DC5V/1000MA
Built-in battery 700MA for receiving signal Image and Sound
Power consumption ≤ 3W product weight 130g
Camera product parameters:
Transmitting frequency: 2.400GHz ~ 2.480GHz transmitting power: 17dBm
Imaging device 1/4 & Prime;CMOS image sensor
Horizontal definition 380TV Line
Send Signal images and sounds
Minimum illumination 0Lux (Infrared LED on)/ 5LUX(IR off)
Open transmission distance 300 m adaptive power supply DC5V/1000MA product weight 70g
Product features:
1, 3.5inch HD LCD screen.
2,380 television line, 320*240 resolution.
3. The receiving screen has built-in lithium battery and the battery is standby for 5 hours.
4. Digital RF modulation with frequency hopping function (RF channel automatically switched).
5. Dynamically select clear channels to avoid interference from other 2.4GHz devices.
6. Data privacy protection (user ID identification is supported).
7. Hypnosis music playback function.
8. The receiving screen can display the room temperature where the camera is located.
9. Two-way intercom supports data encryption.
10. The night vision distance of the camera is 5 meters.
11. Both receiver and camera have built-in microphone and speaker.
12. The transmission distance in open space can reach 300 meters (990 feet).
13. You can connect 4 cameras and take turns to view videos.
Product Size and list
Packing weight: 0.430kg
Packing size: 25*17.00 * 6.5cm

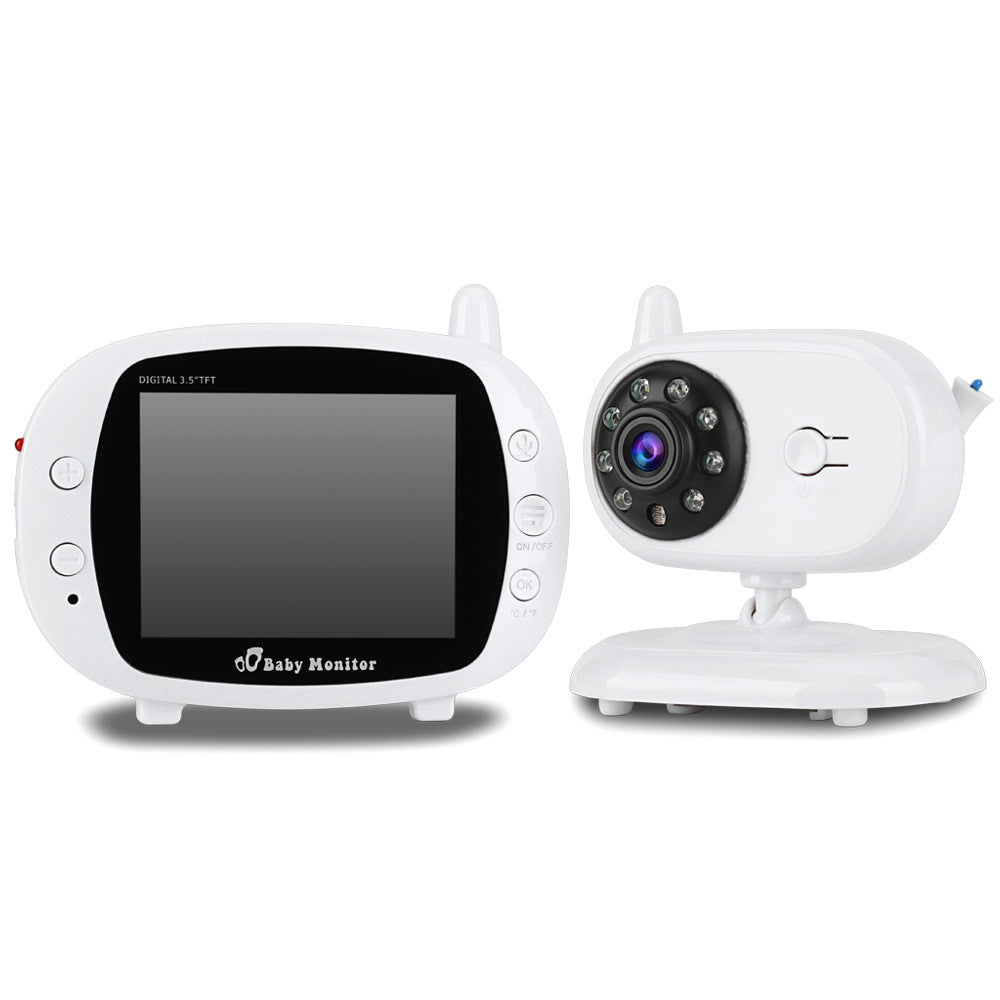

Package content: 1 2.4 GHz wireless baby monitor
1 wireless baby camera
2 power adapters
1 User Manual
