Cooling Fan
Fan Specifications
Dimensions : 92 x 92 x 25mm
Voltage : DC 12V
Current : 0.085 - 0.17A
Power : 1 - 2.04W
Fan Speed : 700 - 2000R.P.M +/-10%
Air Flow : 11.5 - 34.5CFM +/-10%
Static Pressure : 1.3 - 2.6mm/H2O
Noise Level : 15 - 22dB(A)
Bearing Type : Hydraulic
Life Expectancy : 40,000 hours
Connector : (2510) 4Pin PWM
Color : 4 Colors (Red,Blue,Green,White) lighting at the same time
Product Descriptions
Mode: DR90
TDP: With 3 fans - 200W plusmn8% / With 2 fans - 160W plusmn8% / With 1 fans - 130W plusmn8%
Cooling Type: Air cooler
Other names: CPU Fan, CPU heatsink, processor fan, PC Cooler, PC heatsink, etc.
Use: CPU enhance cooling(such as gaming and design). With 3 fans support CPU overclocking.
Support Sockets:
Intel LGA 771/775/1150/1151/1155/1156/1366/2011
AMD FM1/FM2/AM2/AM2+/AM3/AM3+/AM4
(For AMD have to keep the original mount on your motherboard and just buckle the cooler on will be fine)
Installation Type: Non-screw mounting and screw mounting(LGA2011)

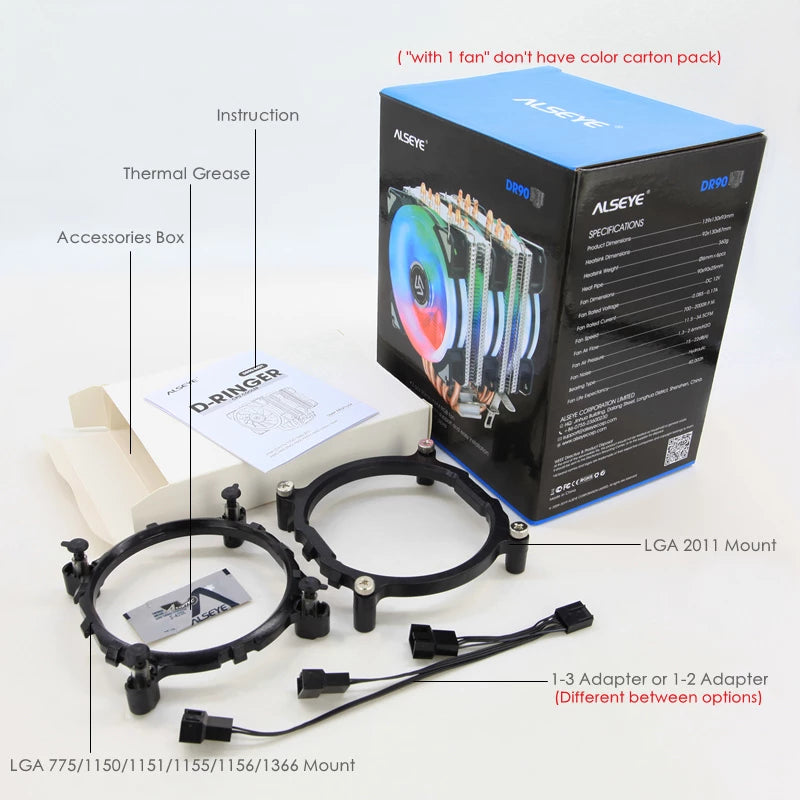

Packing list:
----With 3 fans:
Main device x 1 (Color cartone pack)
Mount x 2 (LGA775-1366 & LGA2011)
Thermal grease x 1 (1g)
1-3 adapter x 1
----With 2 fans:
Main device x 1 (Color cartone pack)
Mount x 2 (LGA775-1366 & LGA2011)
Thermal grease x 1 (1g)
1-2 adapter x 1
----With 1 fans:
Main device x 1 (Simple pack)
Mount x 2 (LGA775-1366 & LGA2011)
Thermal grease x 1 (1g)
