Product features:
1. 10 independent outputs
2. Each circuit has independent short circuit/over current protection
3. Can supply power for 9V, 12V, 18v effector
4. Core blue lights provide lighting for PEDAL BOARD and play the role of short circuit indication
5. Built-in electronic ballast connecting line
Product specifications:
15*5.8*3.5CM
Introduction to short circuit protection:
Each of the 10 output ports has independent output short circuit protection, so when one of the outputs is short circuit, the rest of the output ports are completely unaffected and can work normally. If the switch of the LED lamp is in the open state at this time, the LED lamp corresponding to the short circuit output terminal will turn off, while the corresponding LED lamp of other working ports will still turn on normally, therefore, when multiple effector are used for short circuit, the fault location can be quickly found.
Packing size: 16.7*15.7 * 6cm
Gross weight: 0.52KG

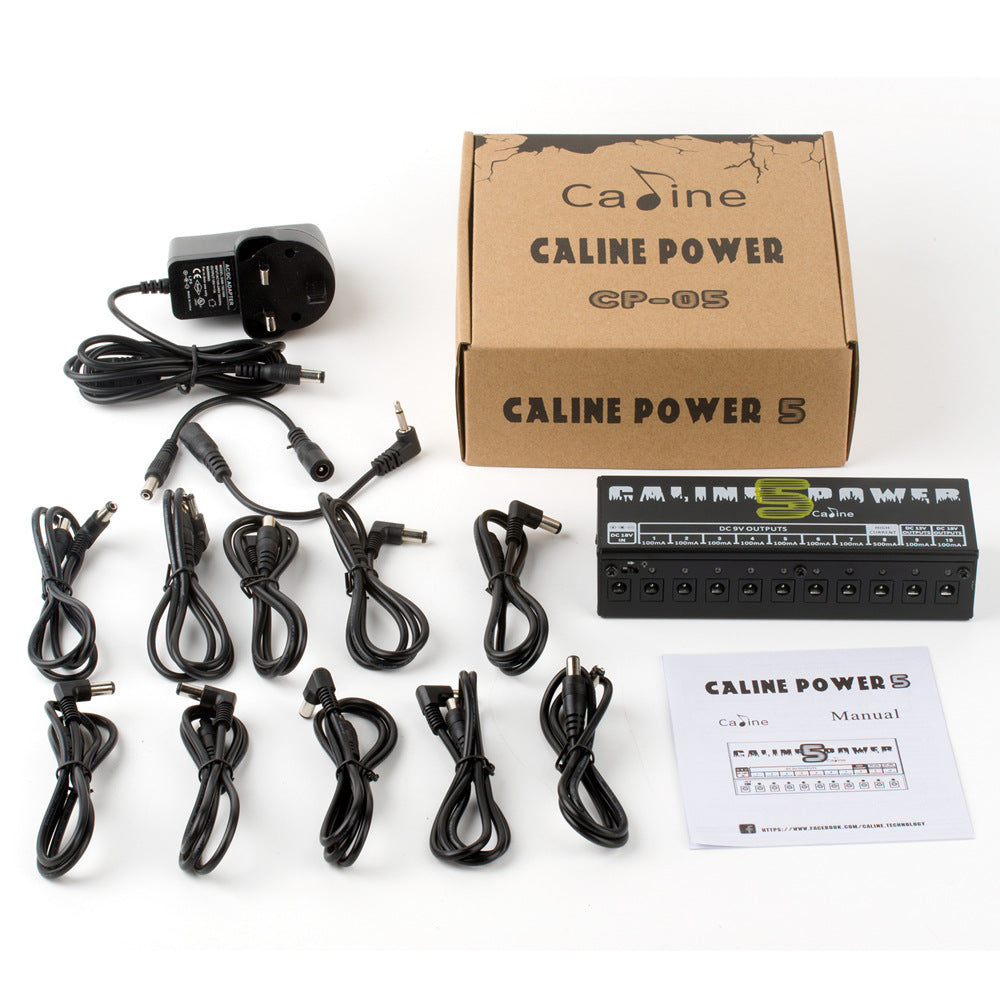

Accessories included:
1 * XCP-05 power supply
1 * Adapter
10 * direct current power cable
2 * polarity reversal cable
1 * User Manual
