It can connect to TV Monitor/LCD directly.
Please select the PAL/NTSC correctly according to your country signal.

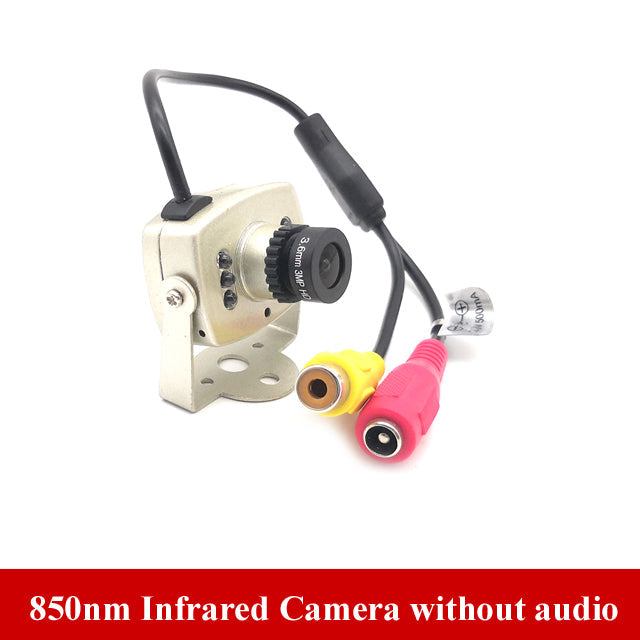

850nm Infrared Camera Specifications:
Image Sensor: 1/4 Inch CMOS
Effective Pixels: PAL: 500(H) x 582(V), NTSC 510x492
Signal System: PAL/NTSC
Horizontal Resolution: 600TVL
Lens: HD 3.6mm
Shutter Speed: 1/50(1/60)-1/100,000sec
White Balance: Auto
S/N Ratio: > / = 48dB (AGC OFF)
Minimum Illumination: 0.2LUX / F1.2

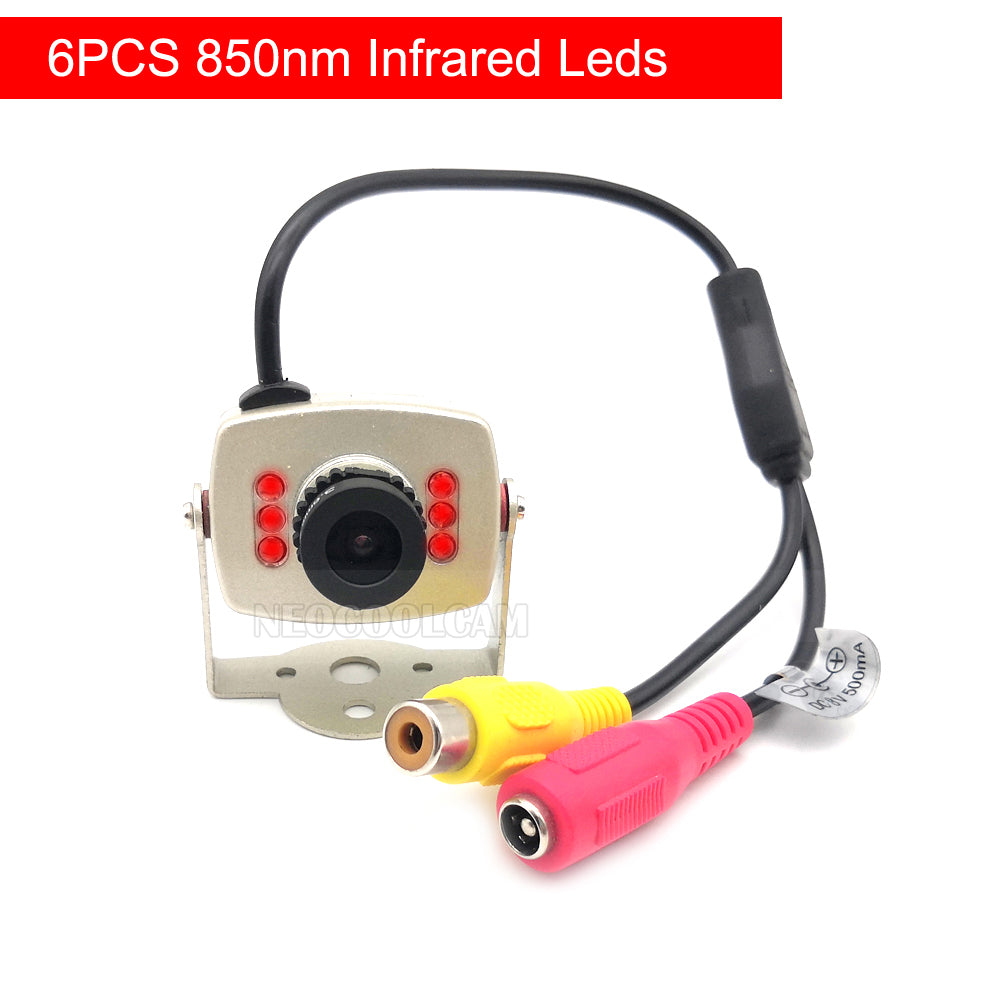

LEDs: 6 pcs IR Illumination, 850nm
IR Distance: 5M

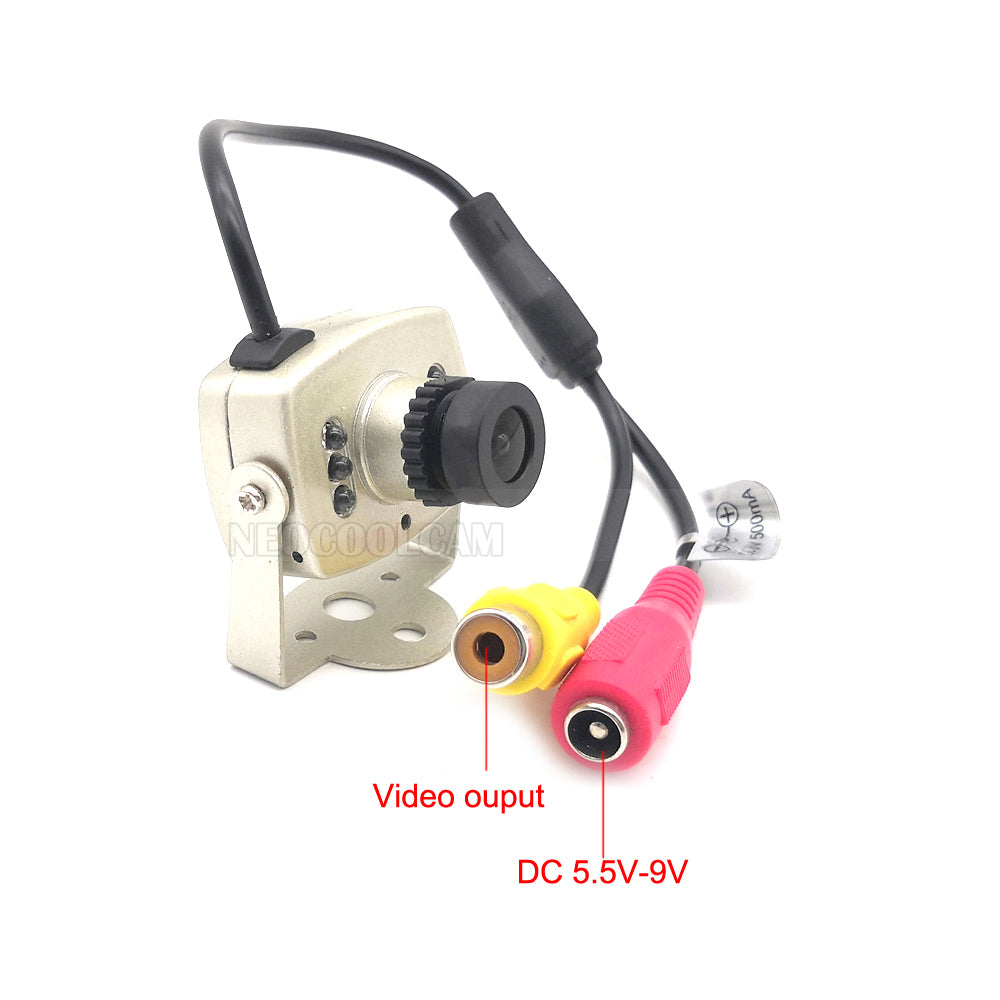

Video Out: RCA Port
Power Consumption: DC6V-9V 800mA
Operation Temperature: -10~+50 celsius degrees
Operation Humidity: RH95 % max
Camera Type: Analog camera

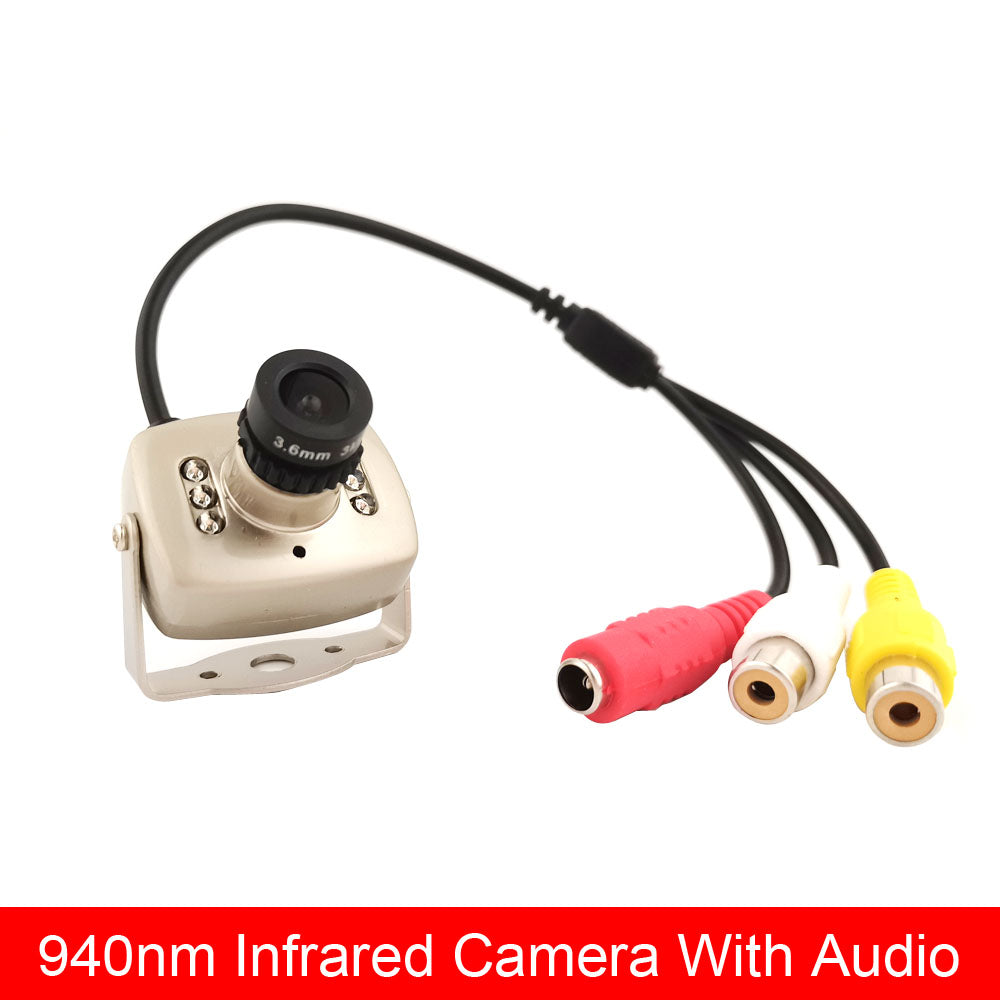

940nm Infrared Camera Specifications:
Image Sensor: 1/4 Inch CMOS
Effective Pixels PAL: 752(H) x 582(V), NTSC 768x492
Signal System: PAL / NTSC
Horizontal Resolution: 600TVL
Lens: HD 3.6mm
Shutter Speed: 1/50(1/60)-1/100,000sec
White Balance: Auto
S/N Ratio: > / = 48dB (AGC OFF)
Minimum Illumination: 0.2LUX / F1.2
LEDs: 6 pcs IR Lights
IR Distance: 5M
Video Out: RAC Port
Power Consumption: DC9V-12V 1000mA
Operation Temperature: -10~+50 celsius degrees
Operation Humidity: RH95 % max
Camera Type: Analog camera
