Specification:
Total Quantity: 60 Pcs
Material: Tin Plated Copper
Box size: 14.5 x 6.5 x 2cm

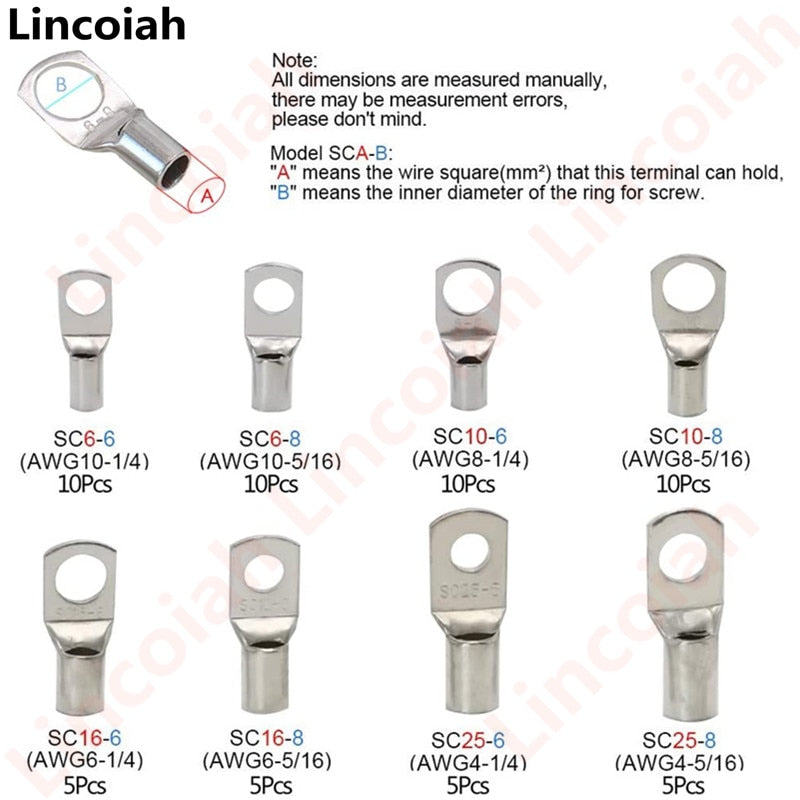

Sizes and quantity:
SC6-6 【10 PCS】 Cable diameter: 6m㎡, Screw hole diameter: 6m
SC6-8 【10 PCS】 Cable diameter: 6m㎡, Screw hole diameter: 8mm
SC10-6 【10 PCS】 Cable diameter: 10m㎡, Screw hole diameter: 6mm
SC10-8 【10 PCS】 Cable diameter: 10m㎡, Screw hole diameter: 8mm
SC16-6 【5 PCS】 Cable diameter: 16m㎡, Screw hole diameter: 6mm
SC16-8 【5 PCS】 Cable diameter: 16m㎡, Screw hole diameter: 8mm
SC25-6 【5 PCS】 Cable diameter: 25m㎡, Screw hole diameter: 6mm
SC25-8 【5 PCS】 Cable diameter: 25m㎡, Screw hole diameter: 8mm

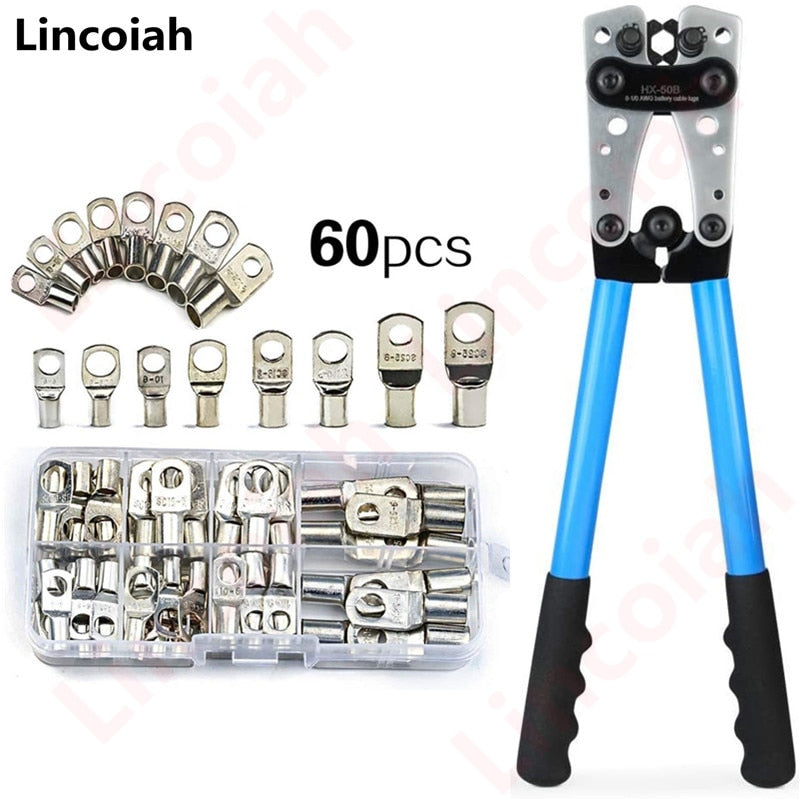

Package include:

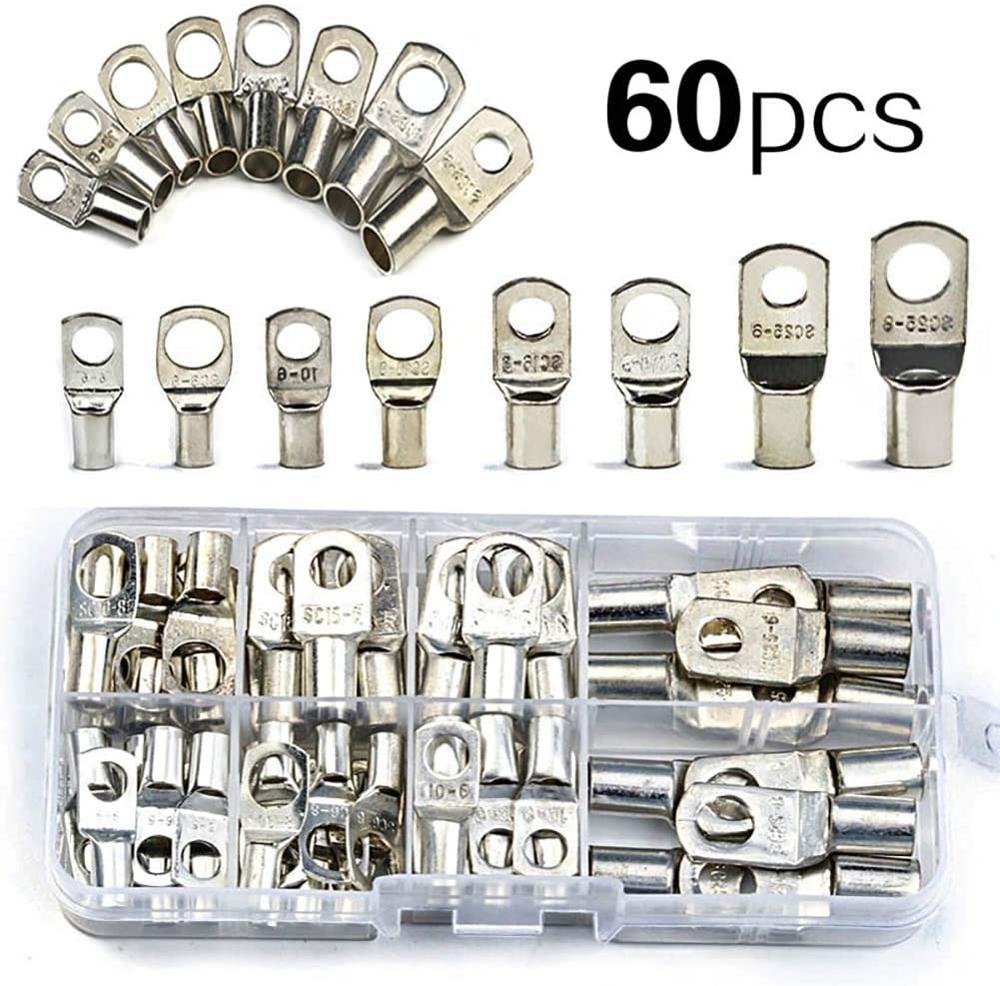

60 Pcs copper ring terminals with box
SC tinned peephole copper terminals are used to connect copper core cables to copper ends of electrical equipment.
The electrolytic tinning guarantees excellent corrosion resistance, while minimizing the resistance of the electrical contact at the right of the beach.
Long-term operating temperature -55 ℃ -150 ℃, tinning, good conductivity and safety.

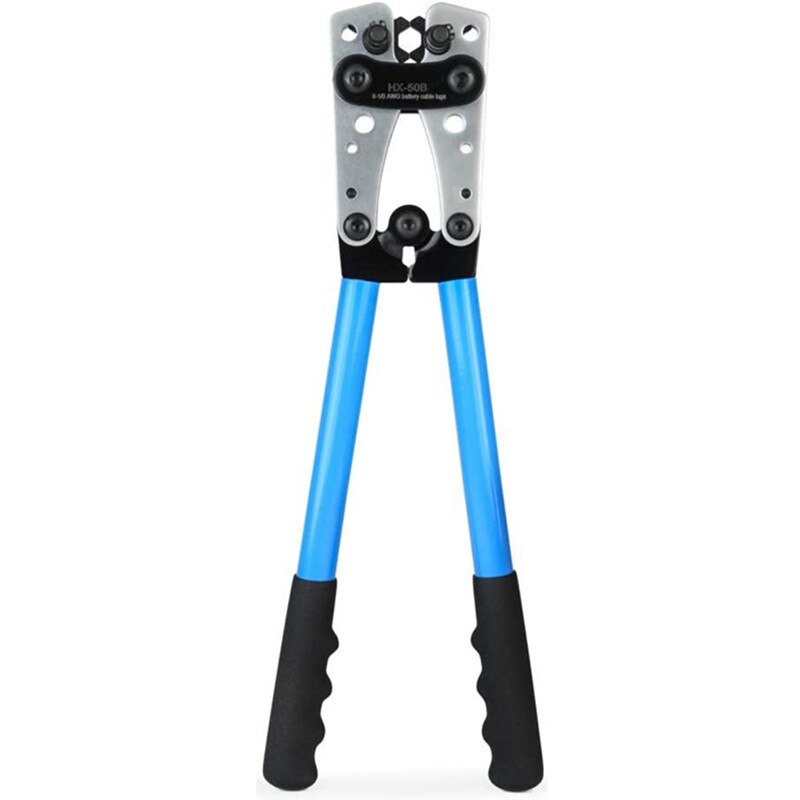

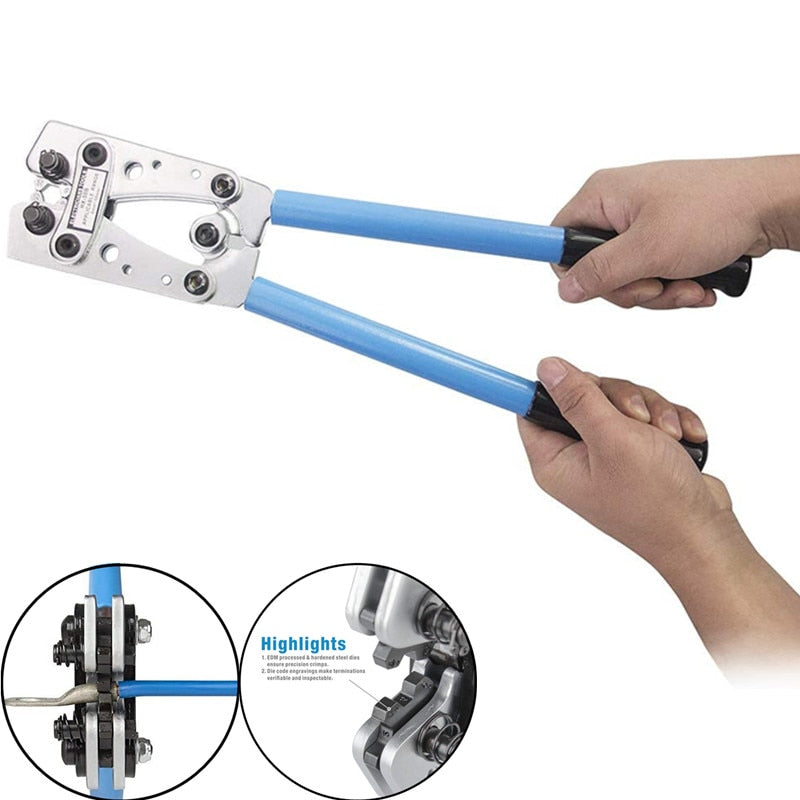

Crimping tool 6-50 mm2

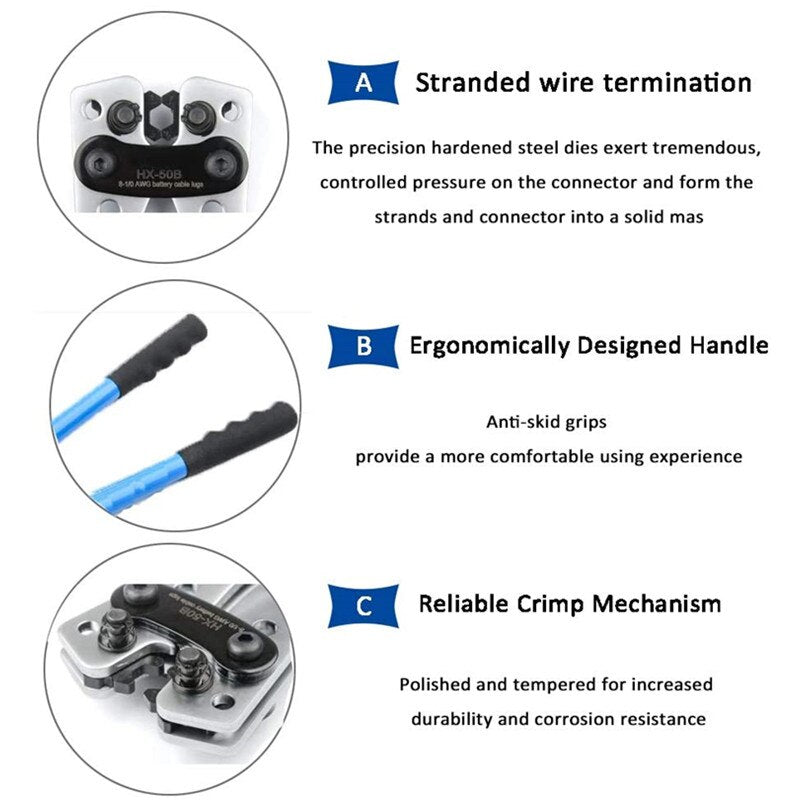

Description of crimping pliers:
The Lincoiah crimping pliers are sturdy and of high quality.
Lightweight and easy to carry crimping tool.

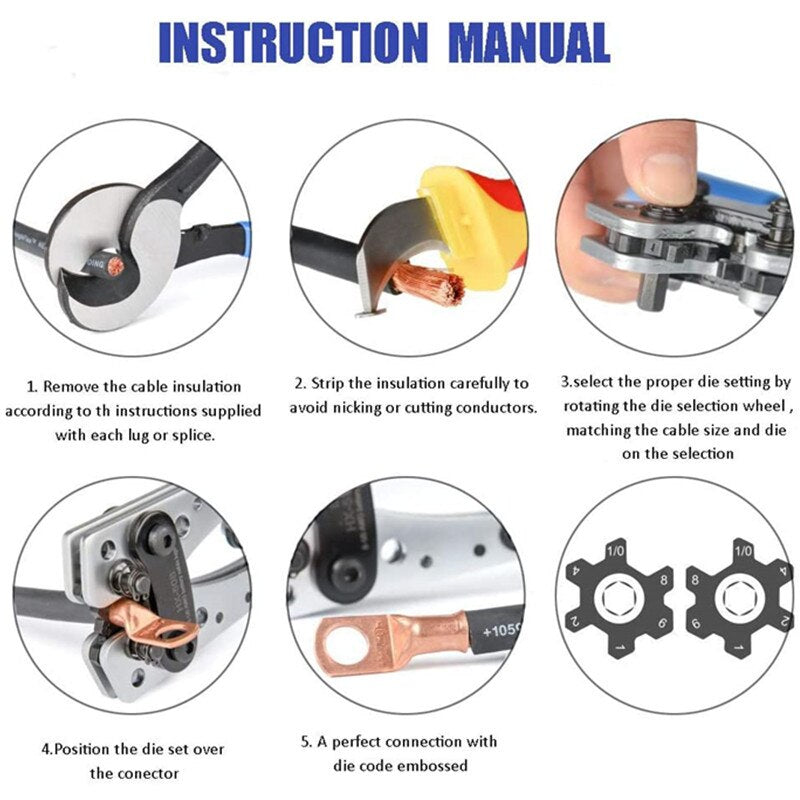

Technical information for crimping:

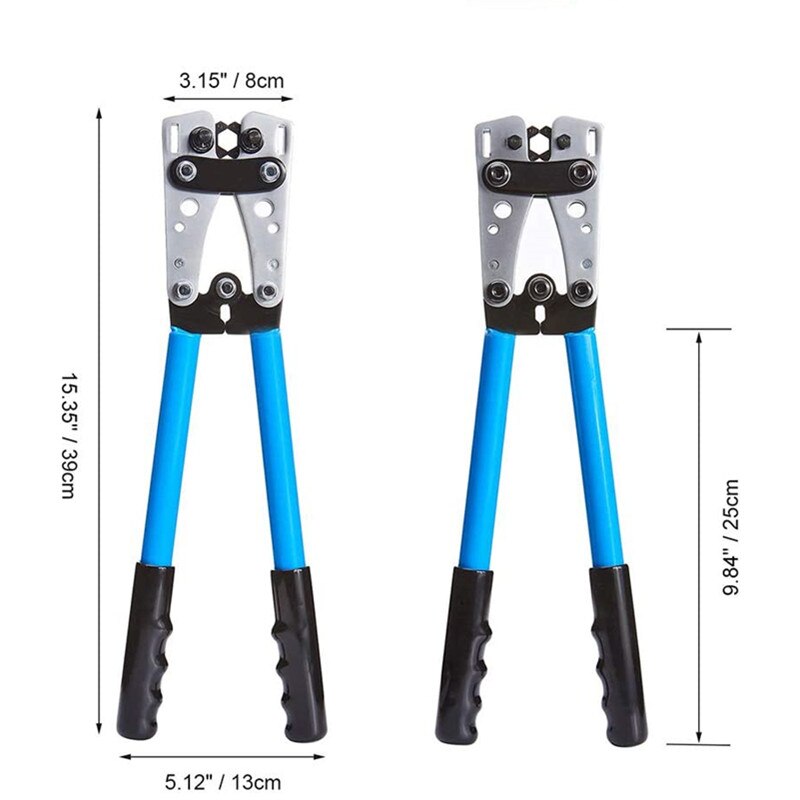

Clamp length: approx 390mm.
Crimp width: approximately 14.2 cm.
Crimp thickness: approx 4.2cm.
Crimping Tool Weight: About 1.5kg.
Crimping Tool Material: Metal.
Crimp adjustment levels: 6/10/16/25/35/50 mm2
Contents:
1 crimping tool.
