Basic parameter CPU BK
Memory 512 KB RAM
Flash 4MB
TF card supports a maximum of 32GB
Input built-in microphone
Output speaker
Frequency 180 MHZ
Charging current 420mA
Power consumption 1.5W(on infrared); 1.0W(no infrared)
Battery capacity Polymer 102525/600mah /4.2V
The battery standby time can last for about 3.5 hours
Infrared irradiation distance 3-5 meters
Operating temperature and humidity -10℃ to 50℃, humidity less than 95%(no condensation)
Camera sensor chip 0328C
The focal length 2 meters
Angle is 90 °
Day/night switch Mode Day/night switch
Digital Denoising 2D Digital denoising
Compression standard Video compression standard MJPEG
Audio compression standard PCM
Audio transmission recording
Ports storage ports microsd card (maximum 32GB)
Power port Micro USB port
Wi-fi parameters Wireless standard IEEE802.11b/g/
Frequency range 2.4 GHz to 2.4835 GHz
The channel bandwidth is 20MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

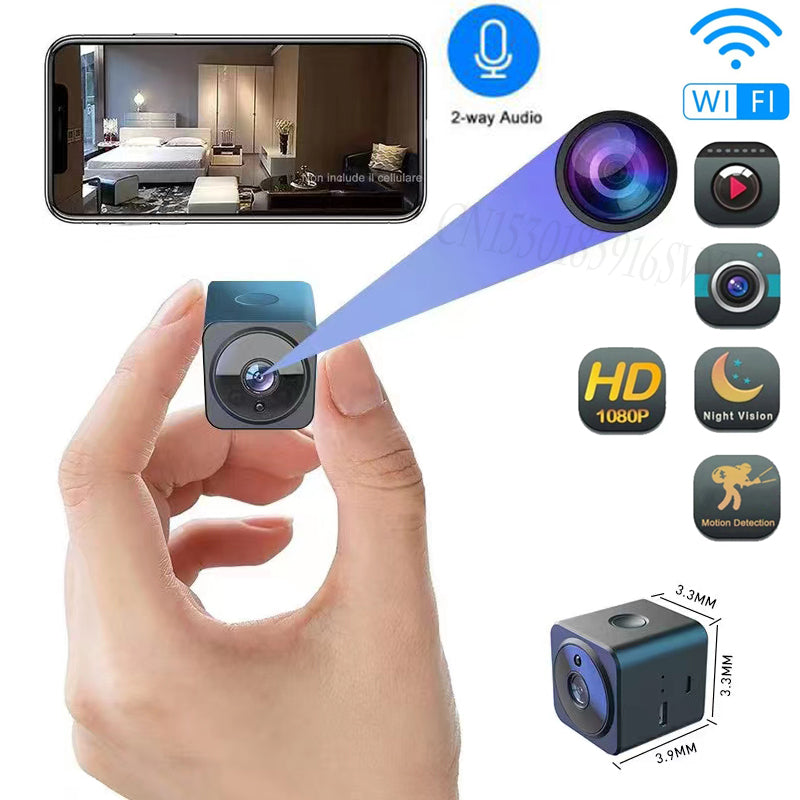

Machine size 39*33*33mm
The weight of the machine is 35.4g
