MUFASHA Electromagnetic Radiation Detector Electric Radiation Magnetic Field Measurement Handheld Lithium
Product description

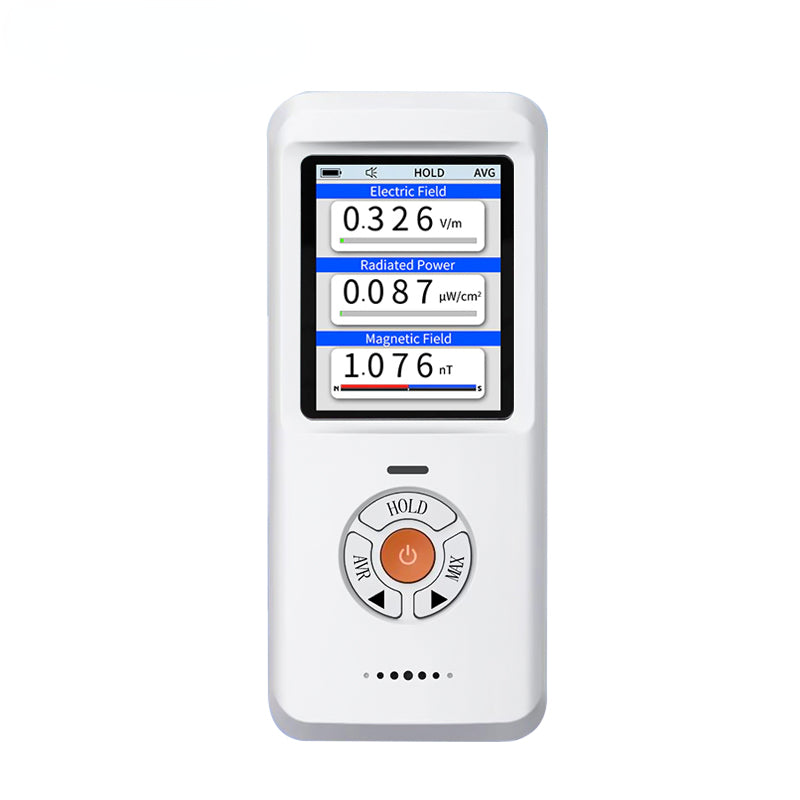

EM-101 is a handheld electromagnetic detector, mainly used to detect electric field strength, radiated power and magnetic field strength, static magnetic field polarity. Equipped with TFT 2.0 color screen, graphical operation menu, display intuitive and easy to use. There are two alarm combinations of sound and flash and the alarm threshold can be set arbitrarily. Suitable for personal investigation of electromagnetic radiation around, or professionals for accurate measurement of electromagnetic radiation.
Product parameters
Effective measurement range:
Frequency response:50MHz-3.5GHz;
Electric field strength:0.1-200V/m;
Radiation power: 0.2-1000mW/m²;
Magnetic field strength: 0.1-1200Gs;
Measurement direction: uniaxial;
Measurement uni;
Magnetic field ( mT and Gs );
Electric field ( V / m );
Radiation power unit: (μW/cm² and mW/m²);

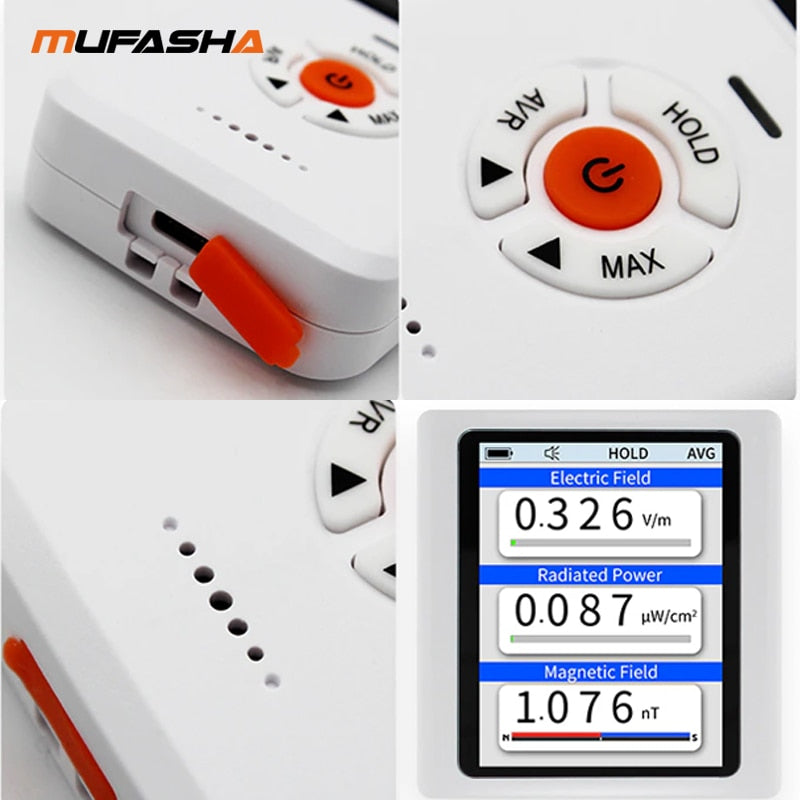

Built-in rechargeable lithium battery, fully charged can last 16 hours(type-C);
Product Features
Real-time measurement
The instrument enters the main interface and clicks on the real-time measurement (or automatically enters the interface at power on) to view the current electric field strength, radiation power, magnetic field strength, static magnetic field polarity.
Electric field waveform
Enter the electric field waveform menu, the waveform displayed in this interface is the electric field instantaneous rms waveform, the highest sampling rate is about 1000 times per second, in this mode you need to view the waveform and data in landscape, the waveform display time is 0.05S/DIV-2.048S/DIV range adjustable (0.05S/DIV means the coordinate X-axis 0.05S per frame), the coordinate Y-axis data is non-linear indication coordinates only for rough strength reference.

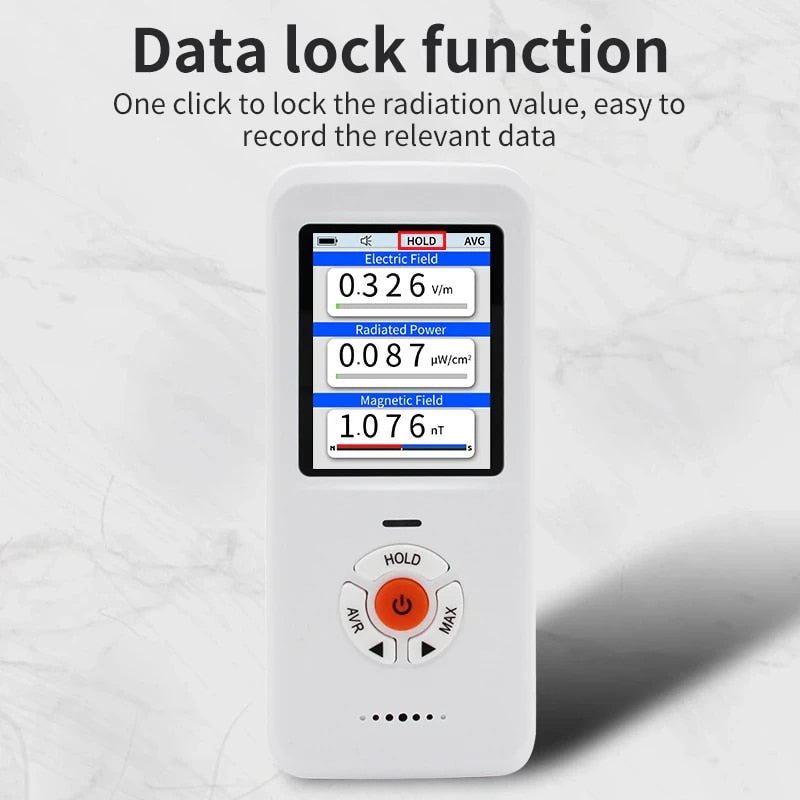

HOLD key: Click HOLD key to keep the current waveform.
RIGHT key: You can adjust the time downward and the waveform is accelerated.
LEFT key: You can adjust the time upward, and the waveform slows down.
Field waveform
The waveform displayed in this interface is the instantaneous RMS waveform of static magnetic field. When the magnetic field is neutral, the waveform coordinate value is in the middle of S and N. When the magnetic field is south polar, the waveform is shifted in the direction of S coordinate on the Y axis, and when the magnetic field is south polar, the waveform is shifted in the direction of N coordinate on the Y axis.
When the magnetic field is north polar, the waveform is shifted in the direction of Y-axis N coordinate. Note that only static magnetic field waveforms can be displayed in this mode. The waveform display time is adjustable from 0.05s/DIV to 2.048s/DIV (0.05s/DIV means 0.05s per frame of X-axis).
HOLD key: Click HOLD key to keep the current waveform.
RIGHT key: can adjust the time downward, waveform acceleration
LEFT key: can adjust the time upward, the waveform slows down
Alarm setting
Electric field strength limit range: 0001-9999 V / m;
Radiation power limit range: 0001-9999 mW/m² (μW/cm²);
Magnetic field strength limit range: 0001-9999 Gs (mT);

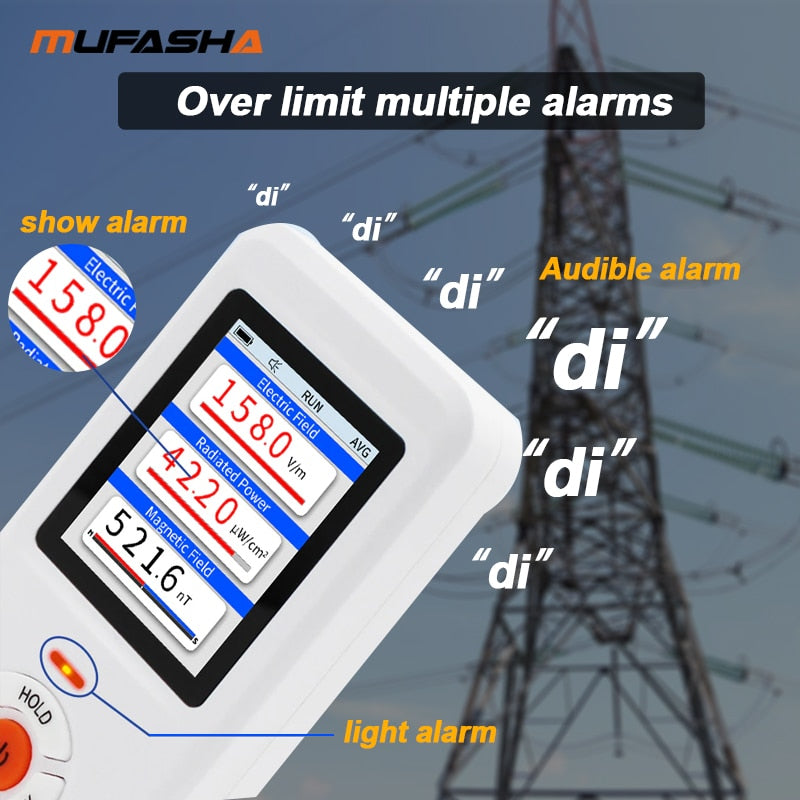

Exceeding the alarm setting value, the detector begins to alarm red light flashes and the buzzer ticks.
Limit standard & about units
ICNIRP(International Standards)
Electric field limit.
(10-400MH2) :28U/m;
(2-300GHz): 61Um;
Radiation power limit.
(10-400MH21) :2W/m2;
(2-300GH21) : 10W/m;
DC magnetic field limit:40mT.
Notes
Please read this manual carefully before using the equipment;
The protection level of the device is IP3X. Avoid damage caused by splashing and rain.
The device cannot accurately measure discontinuous electromagnetic radiation signals, and ionizing radiation;
Do not lose power long-term storage, otherwise it will affect the battery capacity and life;

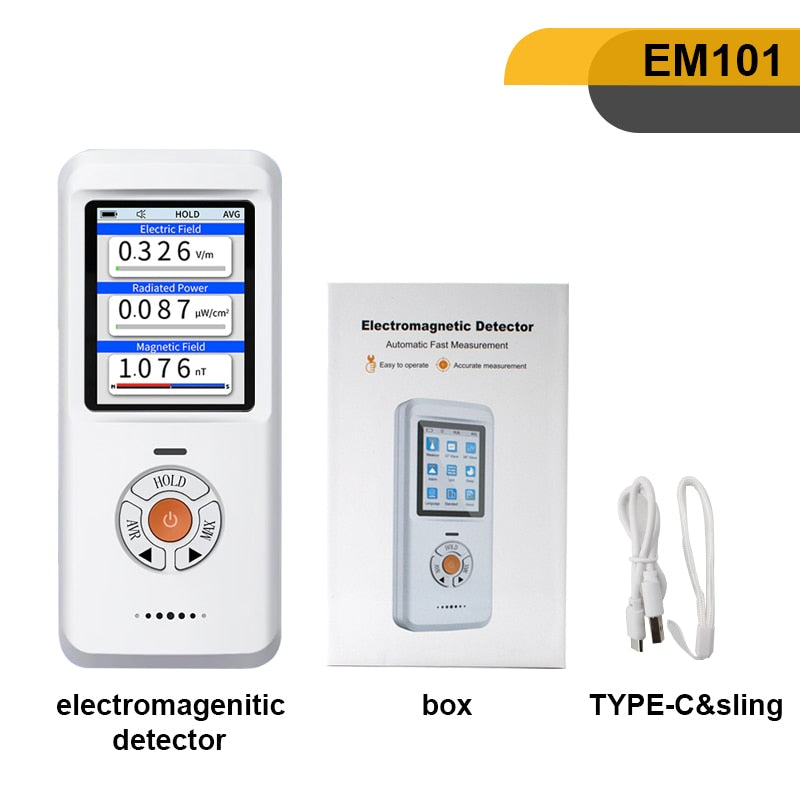

Package Contents
1* Electromagnetic radiation meter 101
1* type-C charging cable
1* Portable Lanyard
1* English instructions
