CCTV 700TVL Analogue Security Camera 3.6MM Lens
Name: Mini CCTV Camera 700TVL for Home security or Aerial photography
Material: Steel
Colour: Black
Technical Parameters
Pickup device: Color, CMOS 7040 chips
Horizontal resolution: 700TVL
System Format: PAL ( H X V ): 512X 582, NTSC ( H X V ): 542X492
Electronic shutter: PAL = 1/50 - 1/100,000 seconds
Minimum illumination: 0.1Lux (F: 1.2)
SNR (Signal-to-Noise Ratio): > 48dB (automatic gain closed)
Gamma: 0.45
Lens: 3.6mm
Automatic gain
Automatic white balance
Lens installation: C/CS

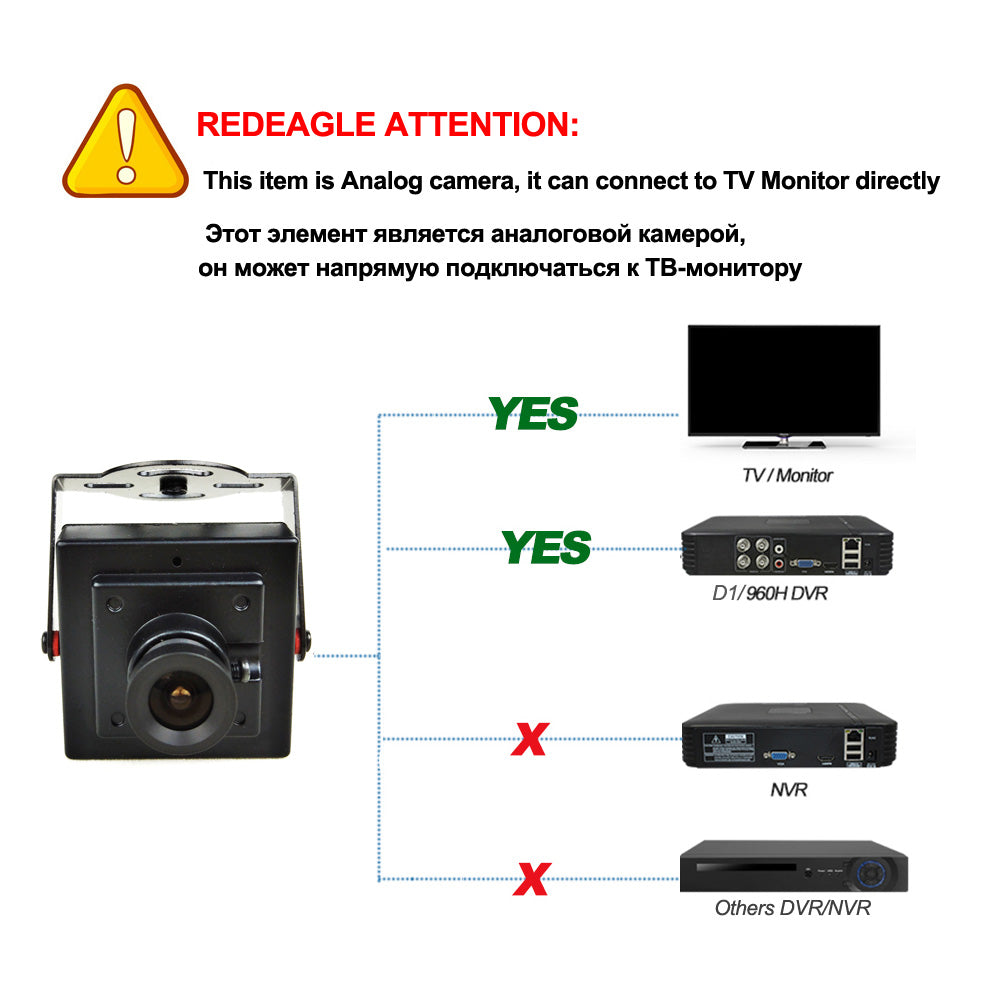

Video Output: 1 Vp-p, 75Ω
Power: DC 12V
Temperature range: -10 ℃ to 50 ℃ (maximum humidity 95%)
Storage temperature: -20 ℃ to 60 ℃ (maximum humidity 95%)
Applications: Widely used for four axis, fixed wing, helicopters and other aerial planes
Packing content:
1 x Mini CCTV Camera
1 x 3PIN Cable
